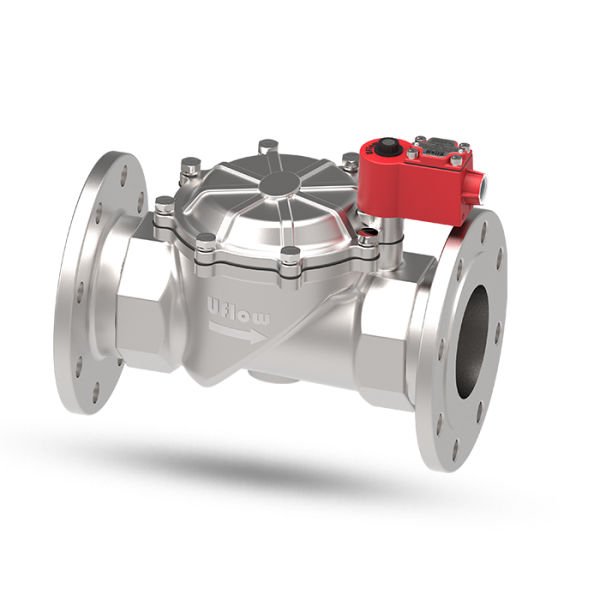

Pilot Operated Diaphragm Type Solenoid Valves (NC)

The inbuilt solenoid pilot operator controls the pilot operated diaphragm type solenoid valves. When the valve is activated, trapped air above the pulse valve diaphragm is swiftly drained, forcing the main diaphragm valve to open quickly. When the pilot valve is turned off, air flows through the bleed hole of the main pulse valve, balancing the diaphragm pressure and closing the valve instantaneously.

Features of Pilot Operated Diaphragm Type Solenoid Valves

1. Pipe (Inch): 1/2″ to 4″
2. Orifice: 12 – 98 mm
3. Operating Pressure: 0.30 – 12 bar
4. End Connection: Screwed / Flange
5. Body Material: CF8
6. Media: Steam, Hot Water, Hot Fluid, Water Oil
7. Main Features: Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical applications & Highly corrosive environments.
